Acoustic wall panel
Acoustic wall panel is a good trend these days and we can produce all types you need, from classical types to unique, DIY, flexible and carve types, etc.
Category: Decorative wall panels
Acoustic wall panel is a good trend these days and we can produce all types you need, from classical types to unique, DIY, flexible and carve types, etc.

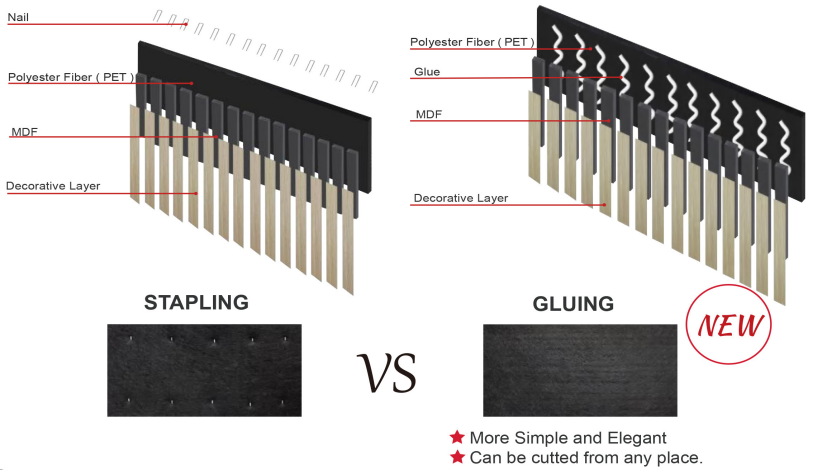

Structure
• Decorative Layer: It is the top layer of the acoustic wall panel to show the colors and it can be made with different materials: technical wood veneer, natural wood veneer, PVC film, melamine, HPL, leather, cotton, etc.
• Eco-friendly Slat: It is the core material of the acoustic wall panel. The main material isMDF. whose color can be black or natural. And Solid Hardwood, Bamboo, PS,WPC and other materials also can be used.
• High-density Acoustic Polyester Fiber(PET): It is an ideal product in sound absorption and heat insulation materials.
Structure Details
| Name | Meterial | Color | Thickness |
| Decorative Layer | Wood Veneer,PVC Film, Melamine,HPL,Leather,etc. |
Wood,Marble, Pure,Metal, Cloth,Leather,etc. |
Wood Veneer: 0.25mm, 0.4mm, 1mm; PVC Film: 0.14mm, 0.16mm,etc. |
| MDF Slat | Formaldehyde Grade: E1, EO, P2, etc. |
Normal=Yellow, Black | 9mm,12mm,15mm,etc. |
| Acoustic Polyester Fiber | PET Density: 1350g/㎡, 1700g/㎡,etc. |
Black, Light Grey, Dark Grey,Coffee,etc. |
9mm,8mm,7mm,etc. |

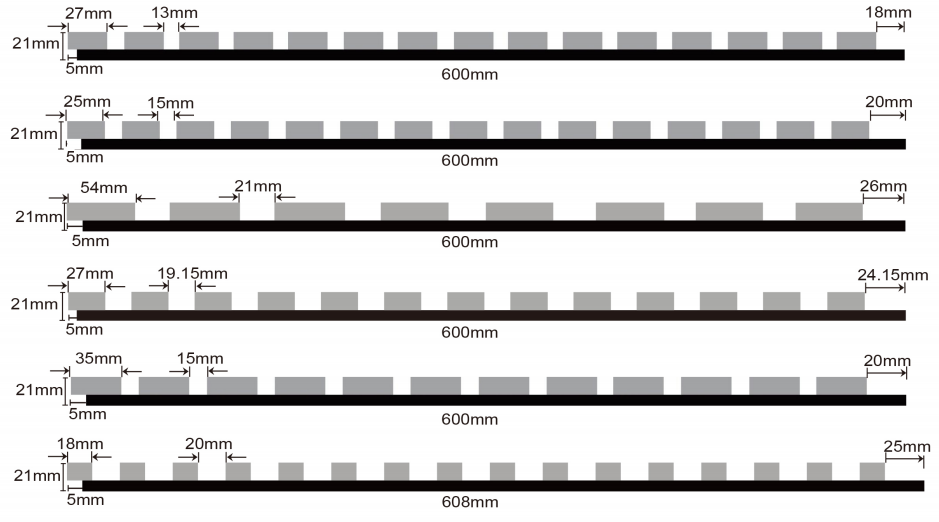

Different models & shapes
MDF Slat Width: 25mm, 27mm, 35mm, 18mm, 54mm, etc.
Separation Distance Between 2 Slats: 13mm, 15mm,19.15mm, 20mm, 21mm, etc.
Application Choice: If installation areas are larger, can consider 27/19.15 type; lf installation areas are smaller, can consider 27/13 type; 18/20 type can be double packed and so can load more quantity in a container.
|

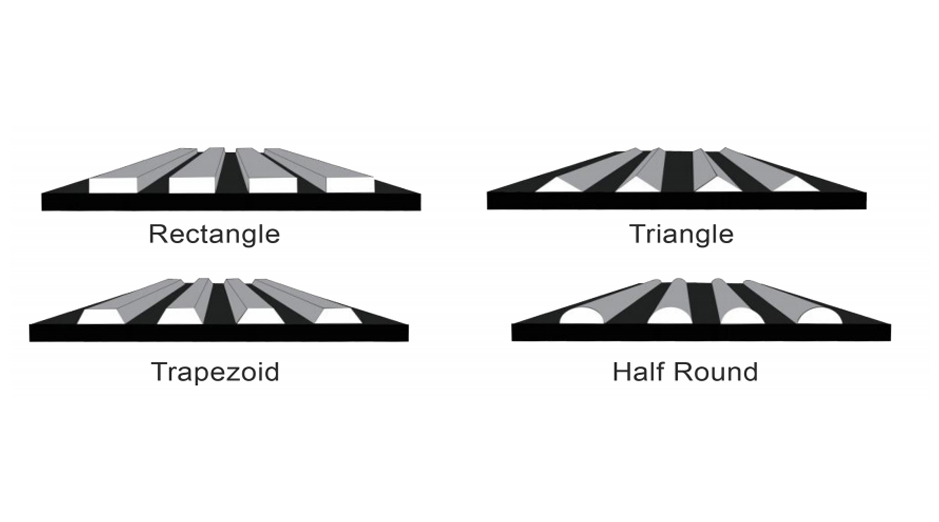

Different shapes
|
Different shapes
|
-
